Energy from Waste Power Plant
Dundee,
Great Britain
The task
MVV Environment Baldovie Ltd., a subsidiary of the Mannheimer Energy Company MVV, commissioned Standardkessel Baumgarte as general contractor for the turnkey supply, construction and commissioning of the energy from waste power plant in Dundee, Scottland. The plant will be constructed next to an already existing fluidised bed firing unit and is to replace the latter in the long term. The electricity generated will be fed into the public grid and a neighbouring industrial company will be supplied with steam.
The solution
The plant is designed with the proven firing and boiler concept by Standardkessel Baumgarte. The technical concept chosen for the incineration lines was supplied from one and the same source by Standardkessel Baumgarte. The supply includes, among other things, an air-cooled moving grate, three vertical radiation passes and a vertical economizer. The scope of supply extends over the entire plant, including construction work.
For more information, please see our reference sheet.
Fuel
Domestic and industrial waste
Number of Lines
1
Low Heating Value
7.50
MJ/kg minimal
10.47
MJ/kg nominal
12.50
MJ/kg maximal
Fuel Throughput
12.64
t/h minimal
13.72
t/h nominal
19.15
t/h maximal
Rated Thermal Input
39.9
MW
Steam Capacity
49.2
t/h
Steam Temperature
405
°C
Steam Pressure
44
bar
Feed Water Temperature
130
°C
Flue Gas Flow
83,070
m³ i.N./h nominal
Flue Gas Temperature Exit
145
°C minimal
155
°C maximal
Commissioning
2020
Operating Permit
WID

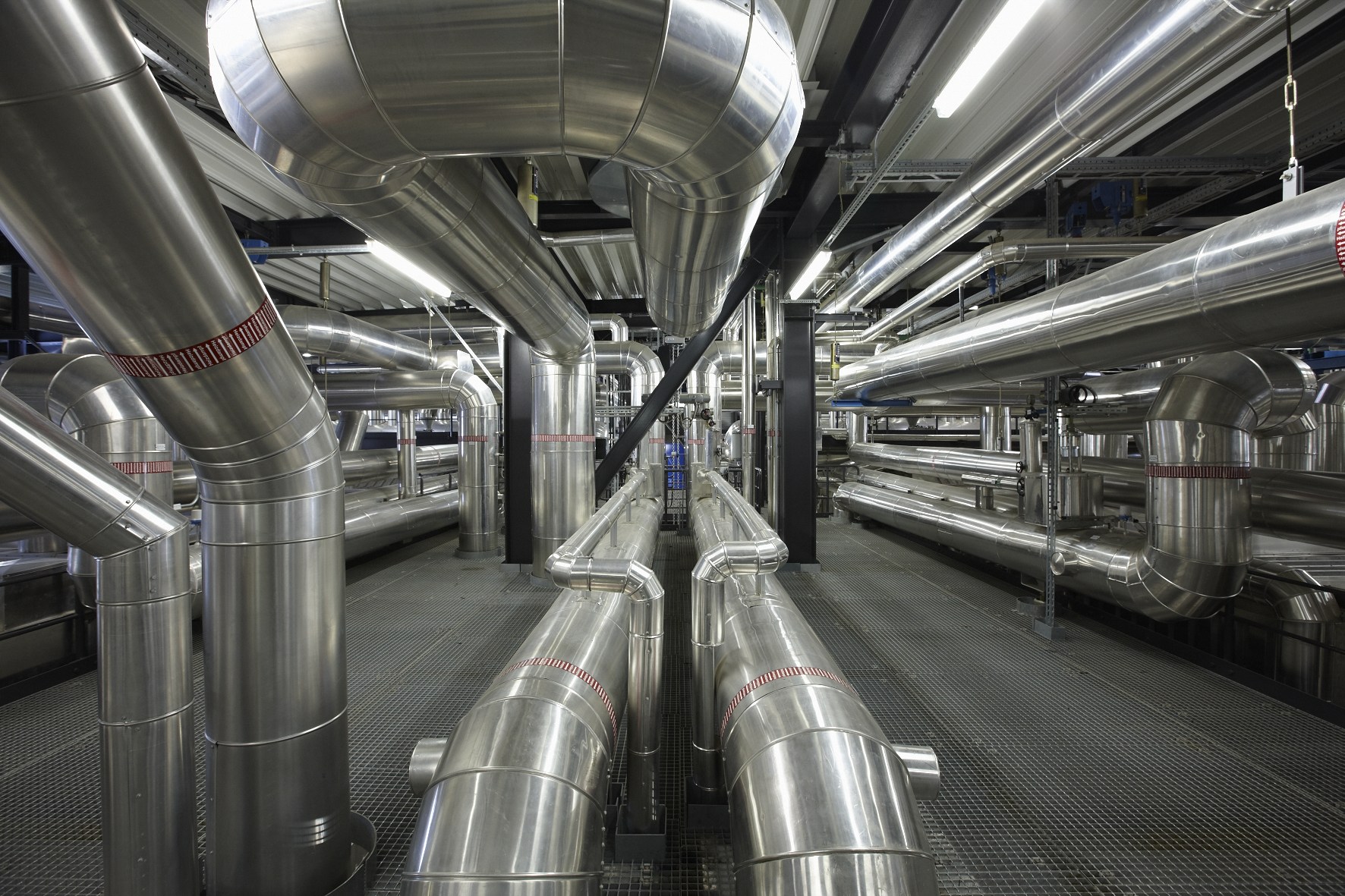

Pipelines
