Energy from Waste Power Plant
Oulu,
Finland
The task
A waste-to-energy plant is to be built at the industrial location of the chemicals producer Kemira Oy in Oulu. This power plant shall ensure the supply of energy and heat to the City of Oulu and the chemicals company. The municipal energy supplier Oulun Energia Oy placed an order with Standardkessel Baumgarte for the supply of the complete combustion line and auxiliary systems. Operator of this plant will be the Laanilan Voima, an affiliated company of the Oulu Energia and Kemira Oy.
The solution
The well-proven concept embracing a tail end boiler combined with a water cooled pusher-type grate was chosen for this power plant which is conceived according to the combined heat and power principle. However, this concept has been enlarged by an external superheater with a firing system to increase the turbine’s efficiency.
For more information, please see our reference sheet.
Fuel
Household and Industrial Waste
Number of Lines
1
Heating Value
8.0
MJ/kg minimal
10.5
MJ/kg nominal
15.0
MJ/kg maximal
Fuel Throughput
11.5
t/h minimal
16.4
t/h maximal
Rated Thermal Input
52.4
MW
5
MW External Superheater
Steam Capacity
58.7
Mg/h
Steam Pressure
88
bar
84
bar External Superheater
Steam Temperature
425
°C
515
°C External Superheater
Feedwater Temperature
130
°C
Flue-Gas Flow
97,000
Nm³/h
Exhaust Gas Temperature
150
°C
Year of Commissioning
2012
Operating Approval
EU Directive 2000/76/EC

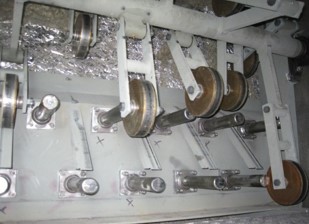

Knocking plant

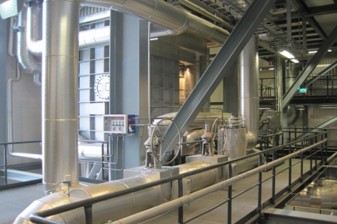

in the boiler house
