Energy from Waste Power Plant
Spremberg,
Germany
The task
For the energy supply of the Hamburger Rieger - Papierfabrik Spremberg, Spreerecycling GmbH & Co. KG is building a WtE combined heat and power plant. With the combined heat and power plant, the entire process steam requirement and, as far as possible, the electrical energy requirement is to be generated in-house with the residual materials from the paper production as well as with externally purchased waste. Standardkessel Baumgarte was awarded the contract to supply the firing system and the steam generator for the plant.
The solution
The integrative concept combines the water-cooled moving grate with the tailend boiler, consisting of the pusher type grate, two vertical radiation passes, tailend with the convection heating surfaces as well as vertical flow economizer heating surfaces.
For more information, please see our reference sheet.
Fuel
domestic and industrial waste
processed
Number of Lines
1
Low Heating Value
8.0
MJ/kg minimal
12.5
MJ/kg nominal
18.0
MJ/kg maximal
Fuel Throughput
23.1
t/h minimal
31.7
t/h nominal
40.0
t/h maximal
Rated Thermal Input (RTI)
110
MW
Steam Capacity
134
t/h
Steam Pressure
41
bar
Steam Temperature
400
°C
Feed Water Temperature
130
°C
Flue Gas Flow
209,700
Nm³/h
Exhaust Gast Temperature Boiler
160
°C
Operating Permit acc. to
17. BImSchV
Commissioning
2013

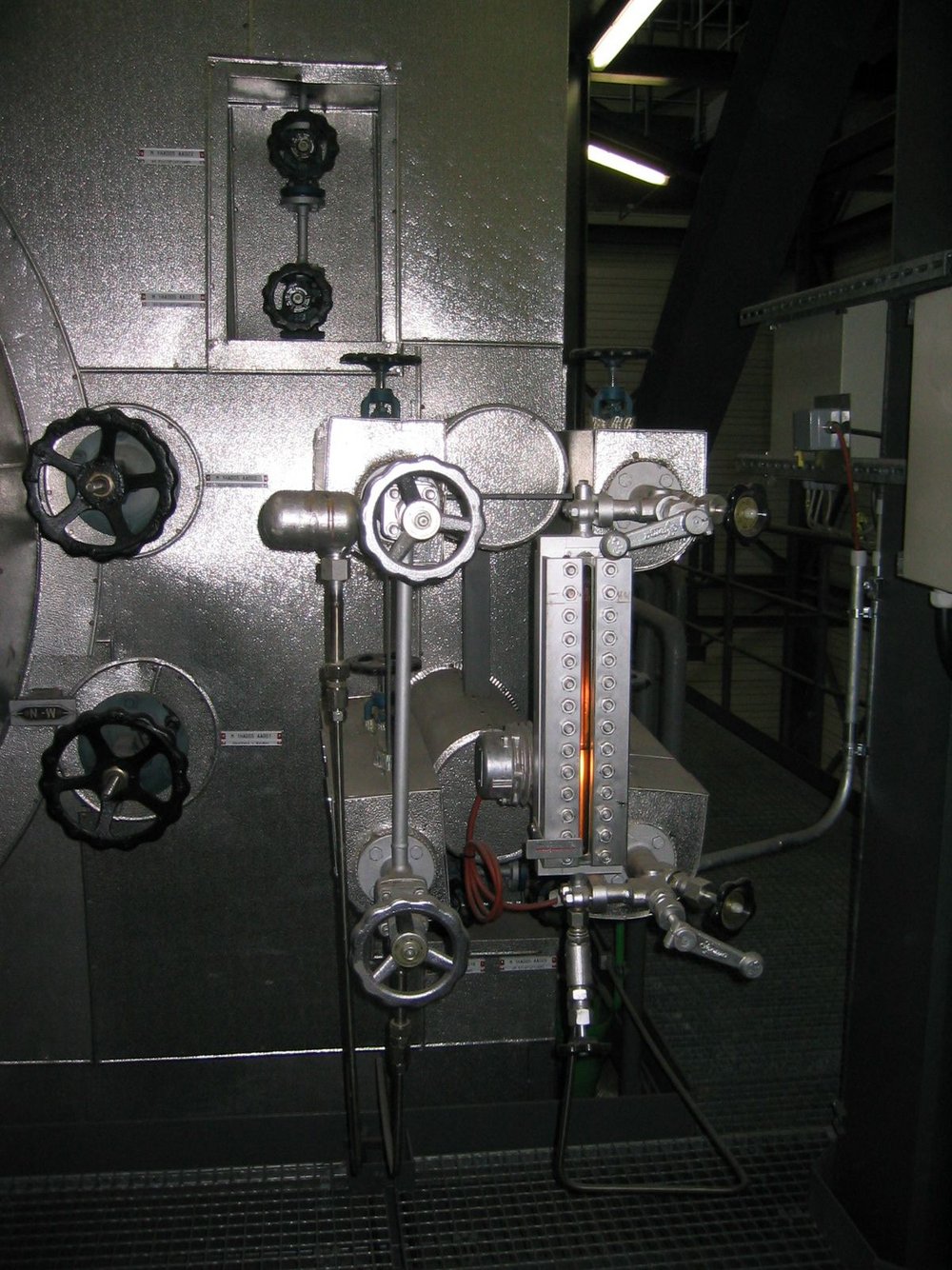

Drum water level

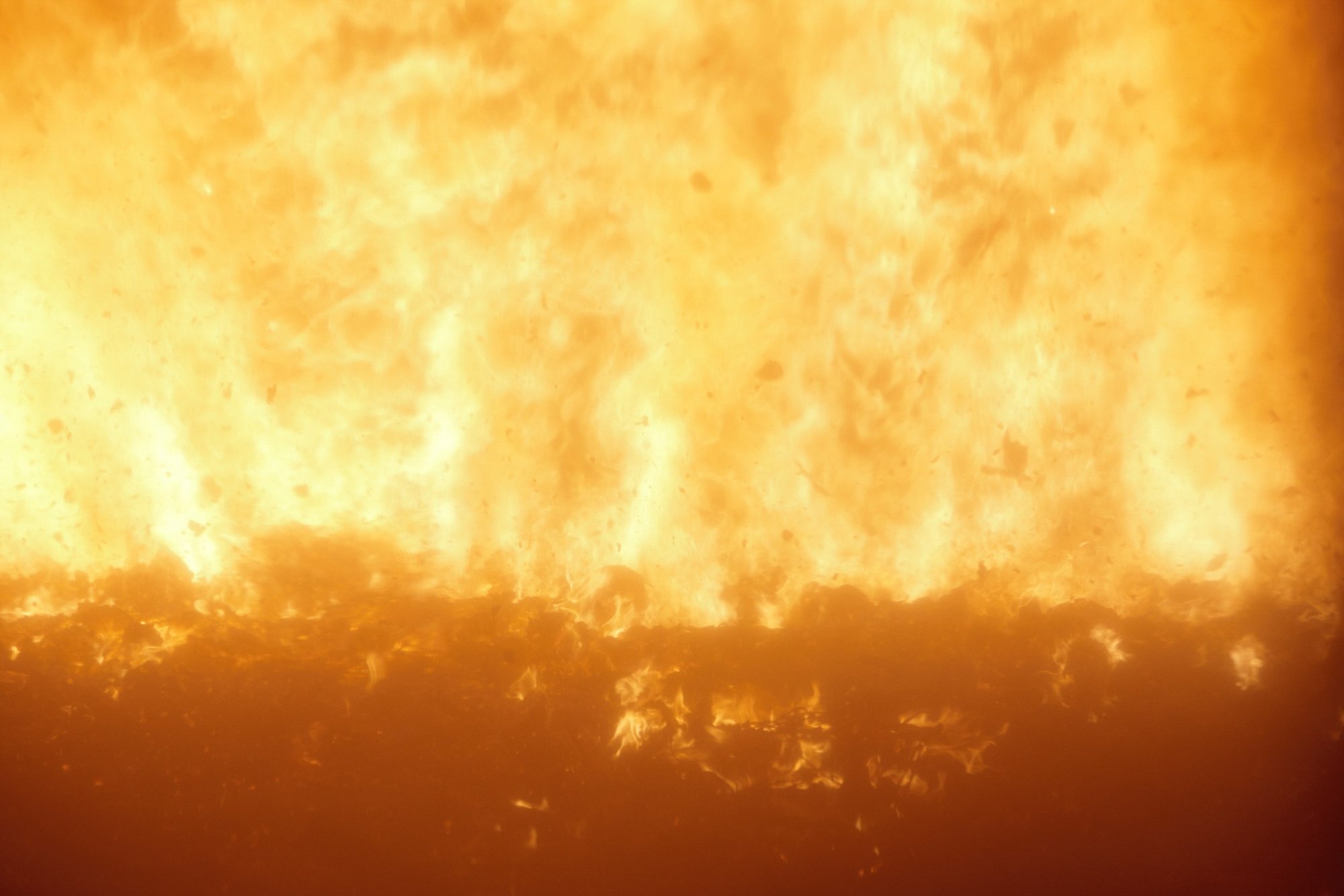

Waste incineration

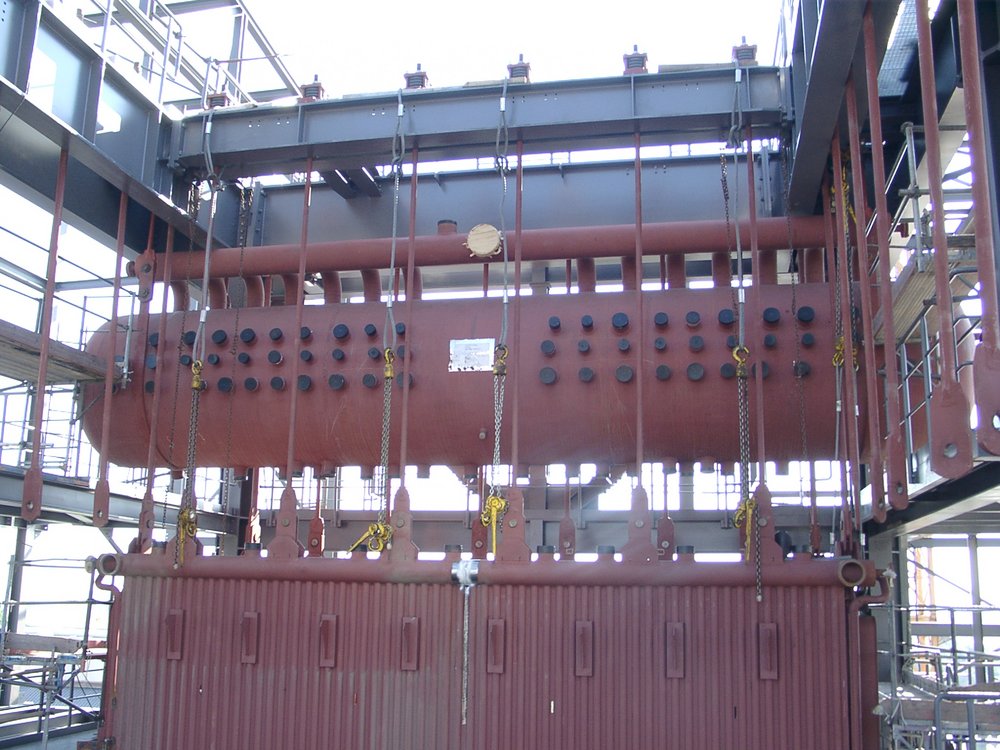

Boiler drum
