Biomass Power Plant
Elsterwerda,
Germany
The task
On the area of an existing district heating plant, owned by Stadtwerke Elsterwerda, a new biomass plant should be installed. The new biomass power plant should replace the old district heating plant and additionally produce electrical power for the public grid.
Biomass is used as fuel, according to the definition of the German
“Biomass Legislation”.
The order was placed to Standardkessel Baumgarte in November 2001.
The solution
The plant is equipped with the following procedural units. The fuel is delivered by trucks. Beginning with the receiving station the fuel is conveyed into the storage silos. From there the fuel arrives in the boiler area via a conveying system.
The thermal part consists of grate firing system, steam generator and flue gas cleaning.
The electrical energy being generated in the turbine/generator is fed into the public grid and the process steam into the steam net of the heating power station.
The back up for the district heating system is done by an auxiliary boiler.
For more information, please see our reference sheet.
Fuel
Waste Wood (A1-A2), Lightoil, Natural Gas
Low Heating Value
10.0
MJ/kg minimal
13.4
MJ/kg nominal
16.0
MJ/kg maximal
Fuel Flow
12.2
t/h nominal
Rated Thermal Input
44
MW
Electrical Output ST
12
MW
District Heating
12
MW
Steam Flow
50
t/h
Steam Temperature
452
°C
Steam Pressure
66
bar
Feed Water Temperasture
105
°C
Flue Gas Temperature Exit
180
°C
Commissioning
2004
Operating Permit
17. BImSchV
Flue Gas Flow
102,000
nominal m³/h i.N.
Boiler Type
Natural Circulation

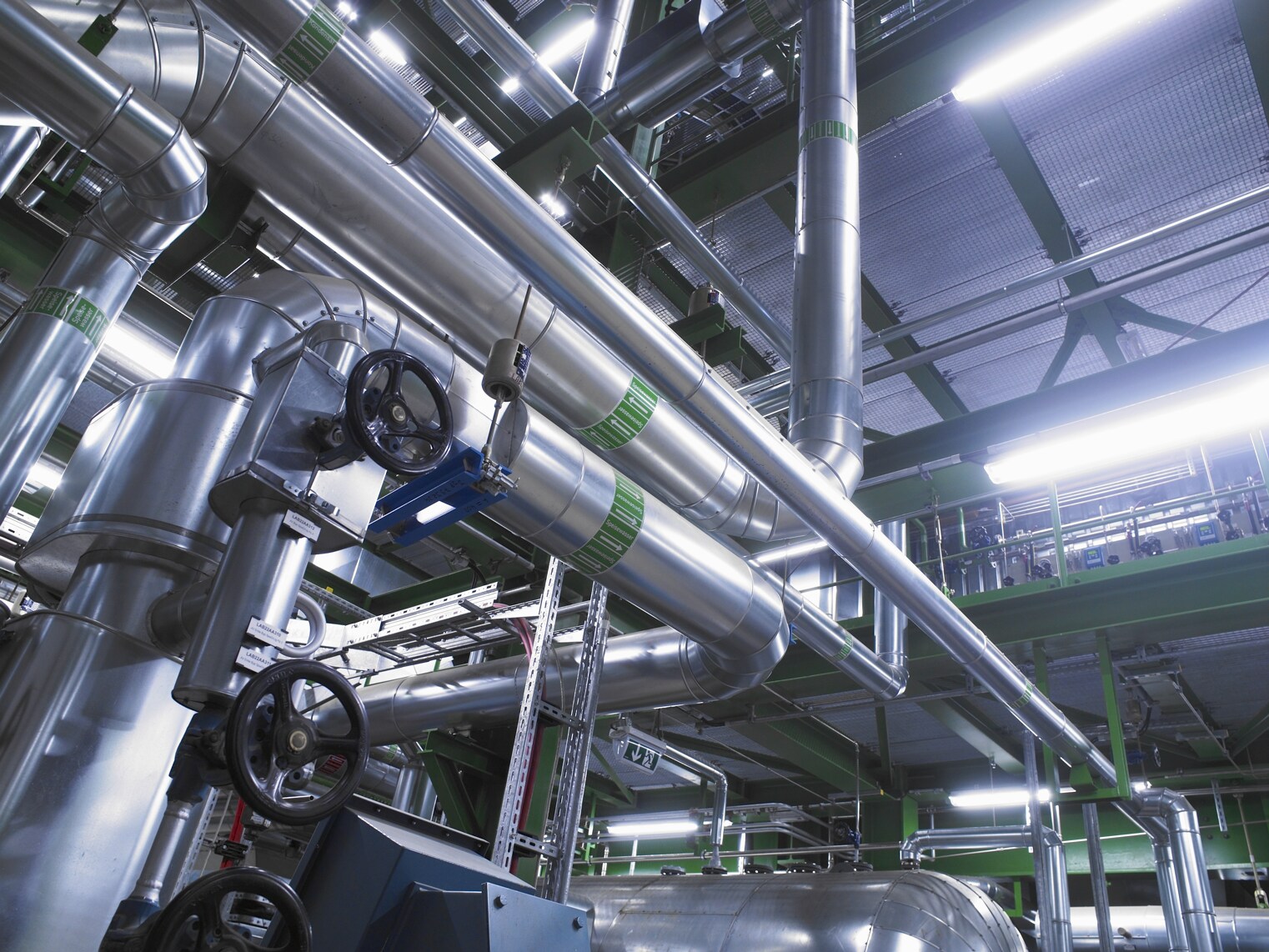

Piping inside boiler house

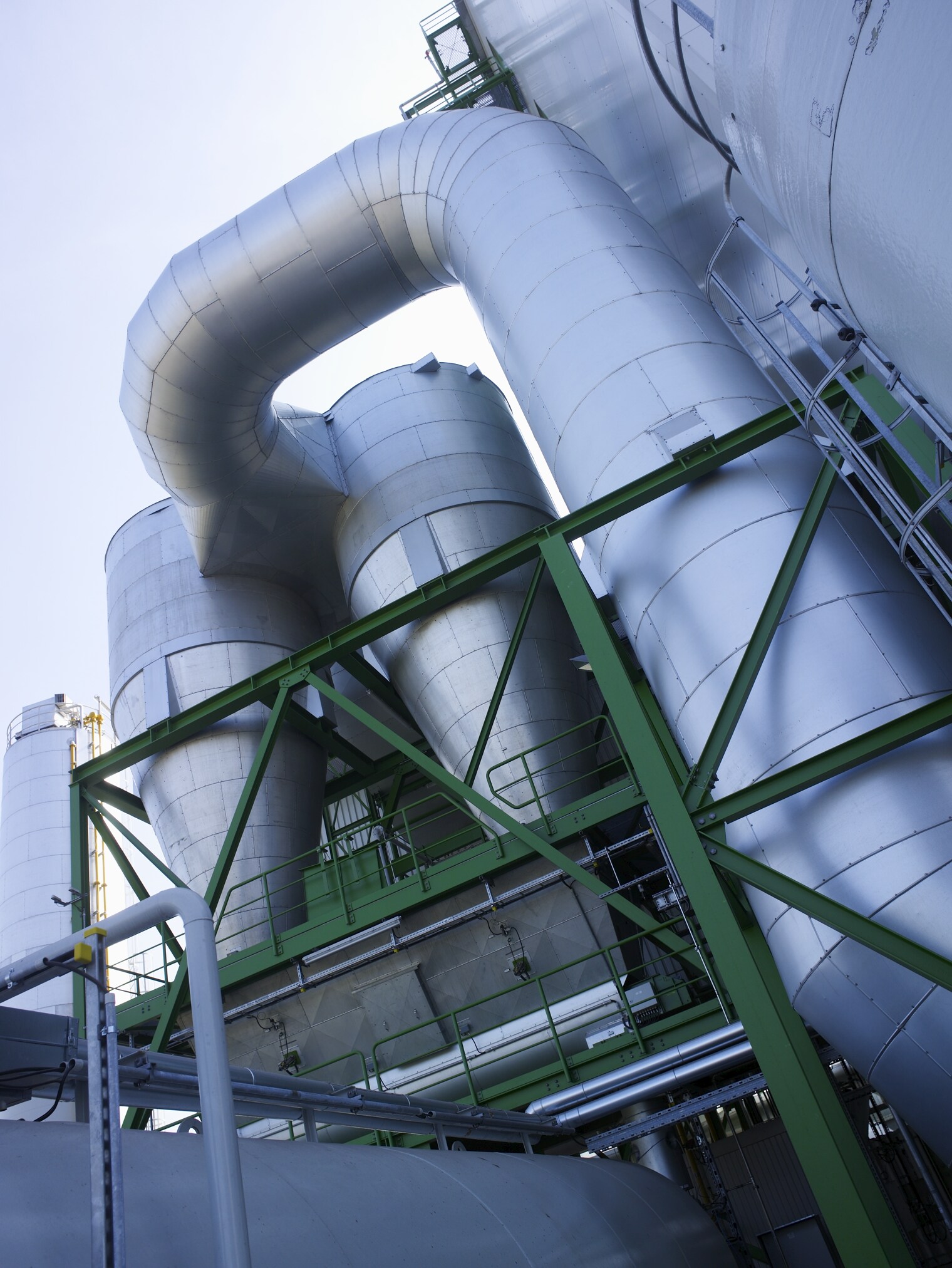

FGT-Cxclone

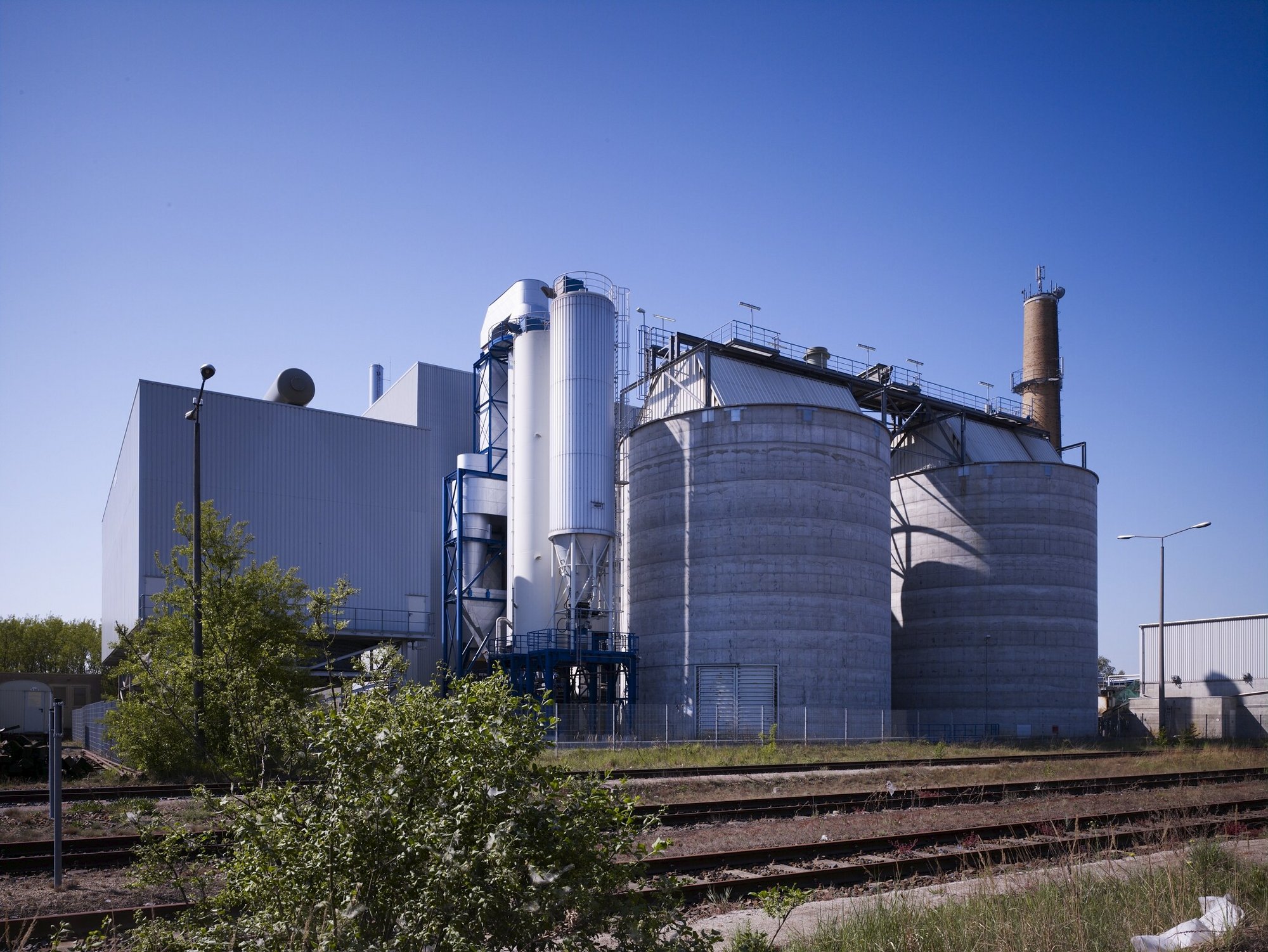

Plant View
