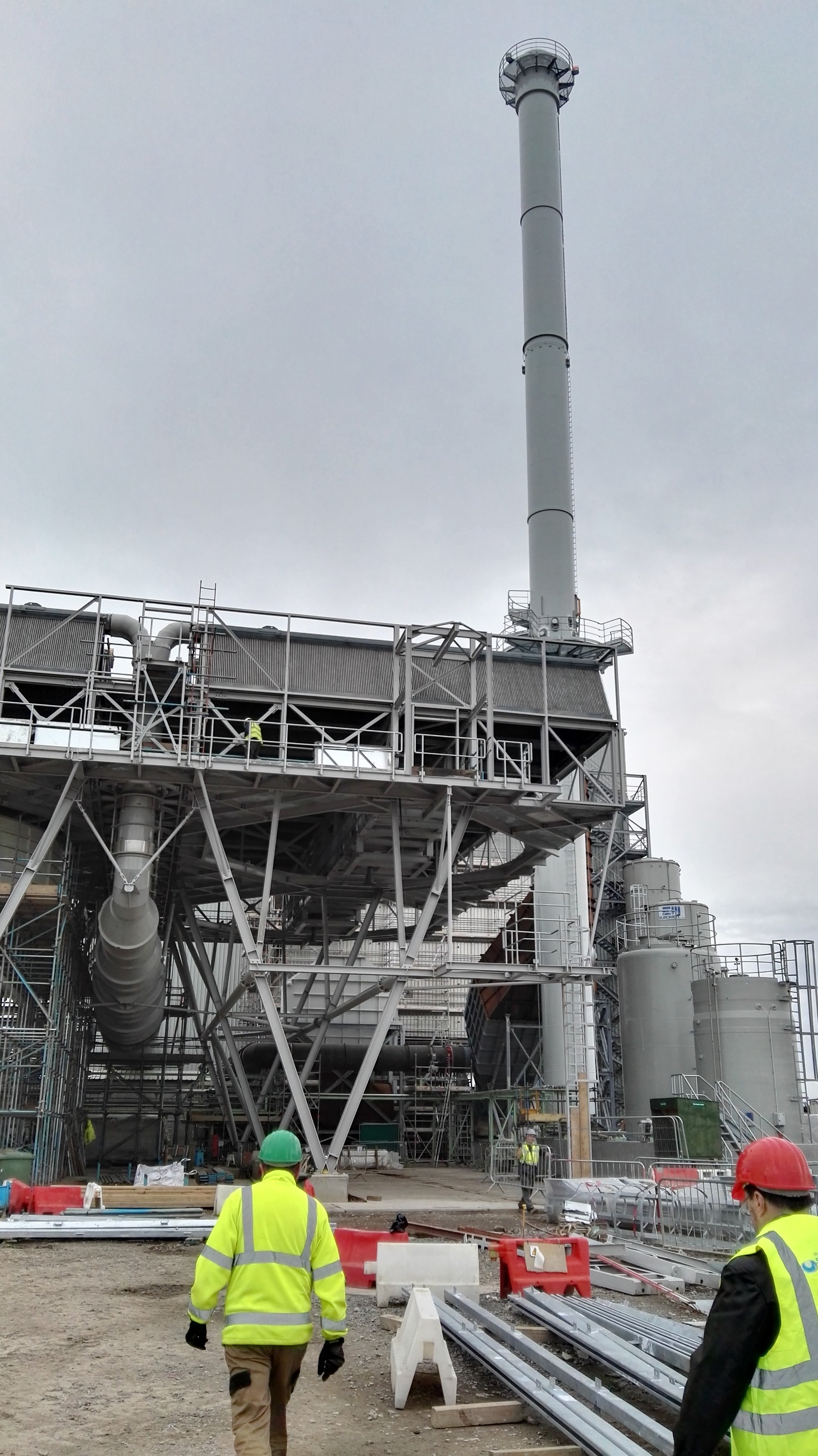

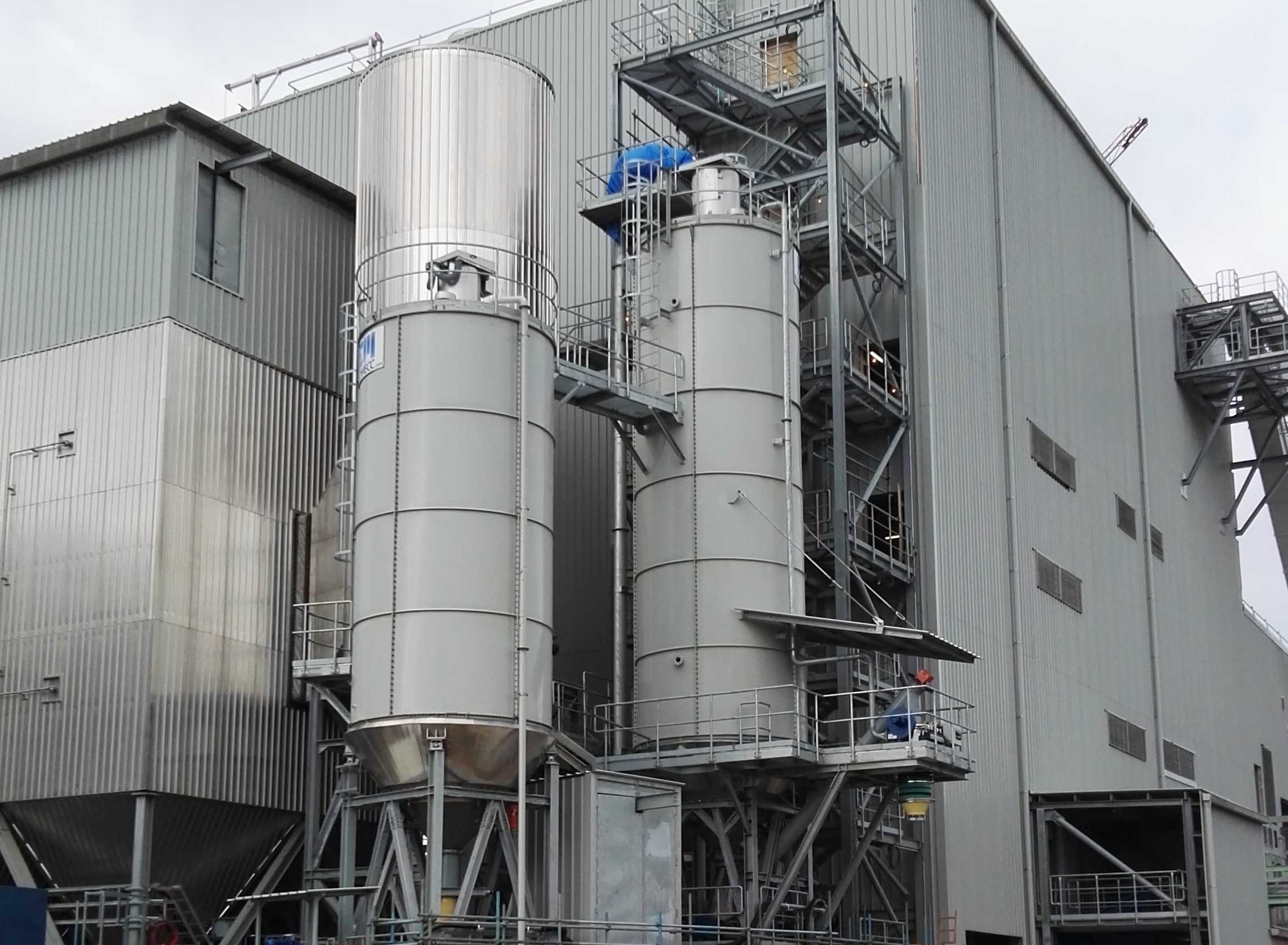

Biomass Power Plant
Widnes,
Great Britain
The task
At the Widnes location in the United Kingdom the construction of a new biomass-fired power plant was planned. The power plant is part of the Stobart Park project for the extension of a transhipment terminal and is meant to supply all of the facilities with heat in the future and to additionally feed electricity into the public grid. Standardkessel Baumgarte was selected as the technology supplier in advance because of its technical know-how.
The solution
The plant is being constructed with the already frequently tried and proven Standardkessel Baumgarte firings system and boiler concept that is specially designed for the combustion of waste wood. The generously dimensioned furnace of the 4-pass boiler concept, as well as, the radiation pass arranged downstream ensure excellent burnout of the flue gases. The downstream convective passes house the heating surfaces of the superheaters, evaporators and economisers. The grate firing system is supplied with combustion air via separate primary air/secondary air systems. The primary air is fed in below the grate, the secondary air above the grate via secondary air nozzles systematically to combustion.
For more information, please see our reference sheet.
Fuel
Waste Wood (A1 - A4), Fuel Oil (at the burner)
Low Heating Value
10.5
MJ/kg minimal
13.9
MJ/kg nominal
15.5
MJ/kg maximal
Fuel Throughput
158,000
t/a nominal
Rated Thermal Input
70
MW
Electrical Power Output
20.2
MW
Steam Capacity
81.7
t/h
Steam Temperature
468
°C
Steam Pressure
81.7
bar
Feed Water Temperature
115
°C
FG-Temperature
120
°C
Rated Flue Gas Volume dry
100,000
m³/h i.N. nominal
Type of Boiler
Natural Circulation
Commissioning
2016
