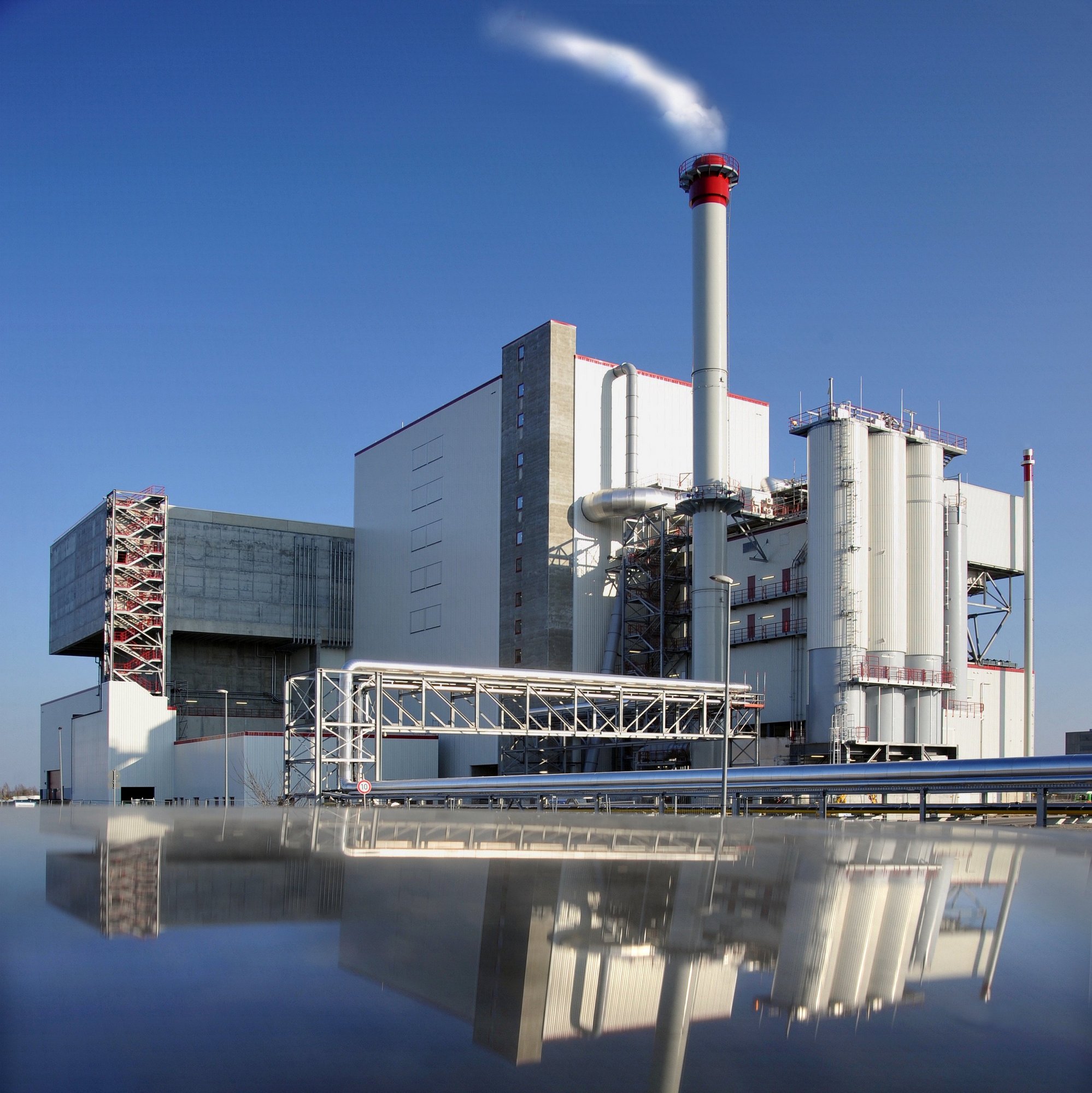

Energy from Waste Plant EBS2
Spremberg,
Germany
The task
Our customer Innovex GmbH, a subsidiary of Hamburger Rieger GmbH, has commissioned us to supply a steam generator plant with feed grate firing. After a construction period of almost three years, the plant will thermally recycle 220,000 tonnes of refuse-derived fuel (RDF) per year and supply electricity and process steam to a paper mill in the vicinity of the RDF power plant.
The solution
The integrative concept combines the air-cooled pusher-type grate with the tail-end boiler, consisting of the combustion chamber, two further vertical radiant passes, tail-end with the convection heating surfaces and vertical flow economiser heating surfaces. In addition to the grate firing system and the steam generator, our entire scope of delivery also includes the feed water system and the boiler house, including connection to the existing Line 1.
For more information, please see our reference sheet.
Fuel
Refuse Derived Fuel (RDF)
Number of Lines
1
Heating Value
8.0
MJ/kg minimal
10.5
MJ/kg nominal
14.0
MJ/kg maximal
Fuel Throughput
16.4
t/h minimal
27.4
t/h nominal
30.2
t/h maximal
Rated Thermal Input
80
MW
Steam Temperature
400
°C
Steam Capacity
101.5
t/h
Steam Pressure
40
bar
Feed Water Temperature
130
°C
Flue Gas Flow
165,000
Nm³/h nominal
Exhaust-Gas Temperature
150
°C
Emission Limit Value
17.BImSchV
Commissioning
2026
