Energy from Waste Power Plant
Oostende,
Belgium
The task
So as to fulfil the task to design a waste to energy plant based on economic parameters with the highest possible efficiency, different plant capacities were examined in close cooperation with the client and the Belgian power supply company Biostoom Oostende nv (formerly Electrawinds Biostoom N.V.). The secured amount of fuel was a decisive factor for the maximum plant capacity.
The solution
The optimum overall economic solution for the planned project was found using the basic planning of an already implemented boiler type with a relevant high capacity.
In the presence of an average fuel throughput of around 17 t/h, the steam generator is capable of producing a volume of steam of approx. 80 t/h at a pressure of 42 bar and a temperature of 400 °C. The steam turbine is designed for full condensing operation. A steam amount up to 19.4 MW can be electrically generated. In close cooperation, Standardkessel Baumgarte accompanied the client’s services throughout the entire project.
For more information, please see our reference sheet.
Fuel
Domestic/ Industrial refuse
Processed
Number of lines
1
Heating Value
11.0
MJ/kg minimal
15.0
MJ/kg nominal
18.0
MJ/kg maximal
Fuel-Throughput
12.6
t/h minimal
16.8
t/h nominal
21.0
t/h maximal
Rated Thermal Input
70
MW
Steam Capacity
80.3
t/h
Steam Pressure
42
bar
Steam Temperature
402
°C
Feedwater Temperature
130
°C
Flue-Gas Flow
135,000
m³ i. N./h
Exhaust-Gas Temperature
180
°C
Operating Approval
Vlarem II
Commissioning
2009

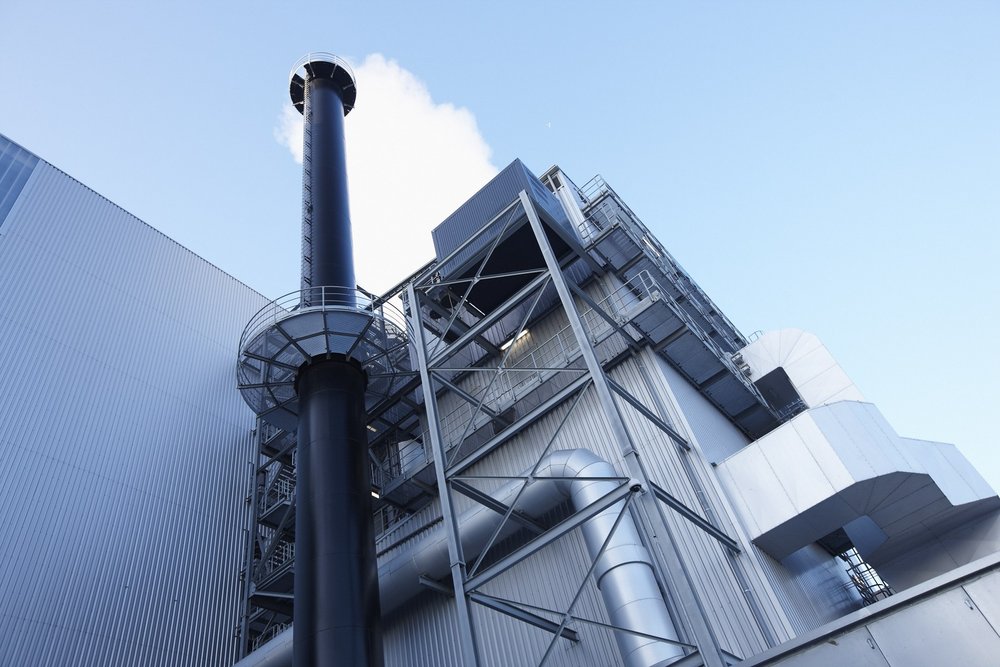

RGR Fireplace

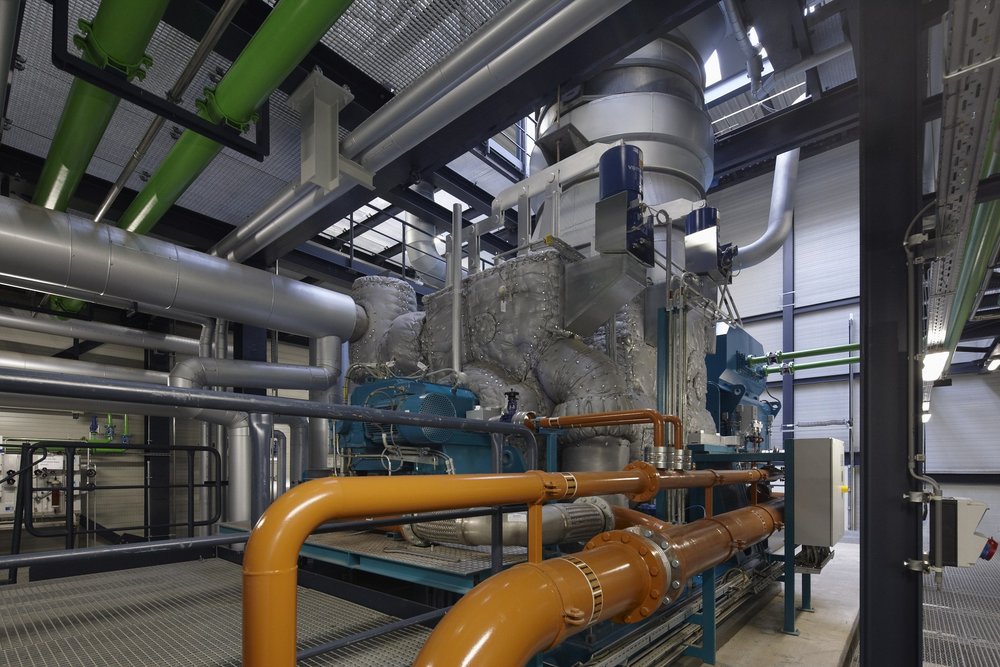

Steam turbine

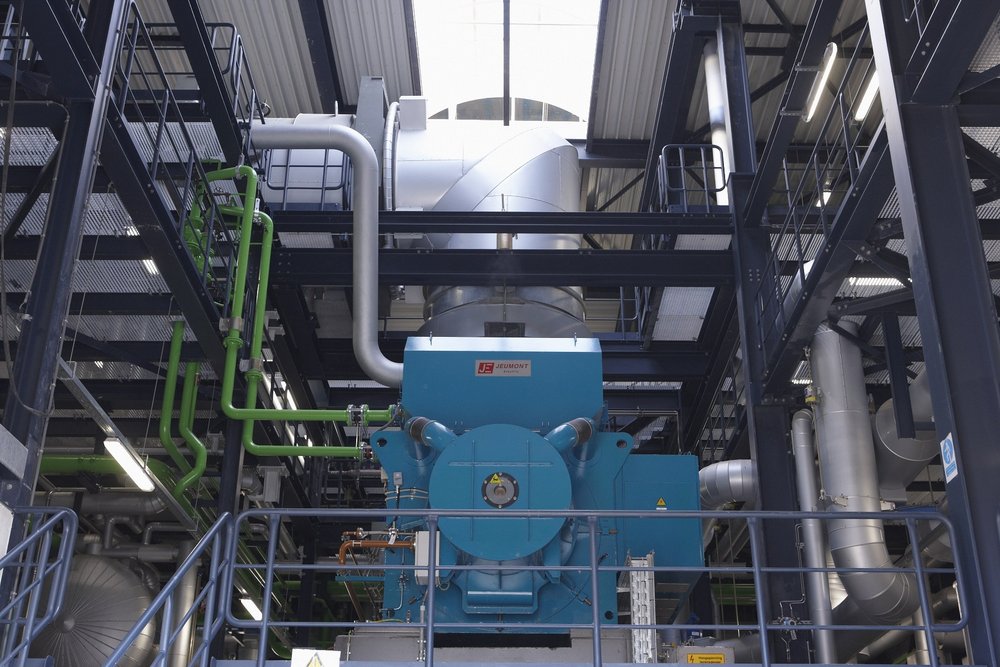

in the boiler house

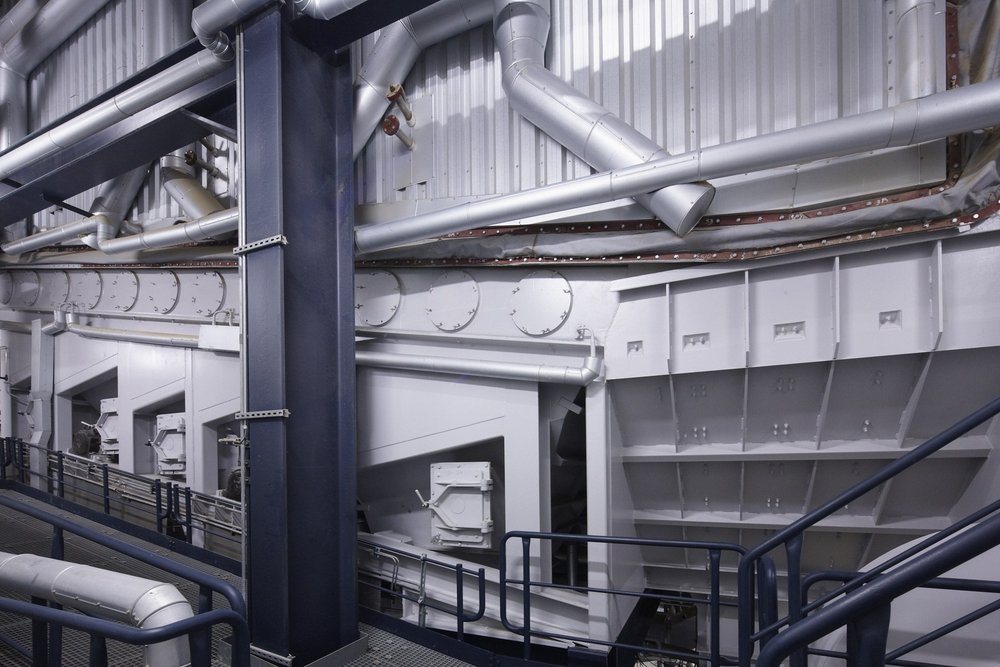

Grate view
