Energy from Waste Power Plant
Weener,
Germany
The task
To supply the paper mill located close to the installation site with steam energy and electrical power from the incineration of waste, a concept was required that had high plant availability as its basis.
The solution
The implementation of the latest findings from existing plants, as well as the low steam parameters were decisive for the concept. The incineration line was realized with a two-lane, completely water-cooled pusher-type grate system, a steam generator with two radiation passes downstream of the furnace, tailend with the evaporator and superheater heating surfaces, as well as an economizer in vertical design.
For more information, please see our reference sheet.
Fuel
Domestic and industrial waste
Processed
Number of Lines
1
Low Heating Value
11.0
MJ/kg minimal
14.0
MJ/kg nominal
18.0
MJ/kg maximal
Fuel Throughput
12.6
t/h minimal
18.0
t/h nominal
21.0
t/h maximal
Rated Thermal Input (RTI)
70
MW
Steam Capacity
85
t/h
Steam Pressure
27
bar
Steam Temoerature
320
°C
Feed Water Temperature
103
°C
Flue Gas Volume Flow each
140,000
m³ i. N./h
Exhaust Gas Temperature Boiler
160
°C
Operational Permit
acc. to 17. BImSchV
Commissioning
2008

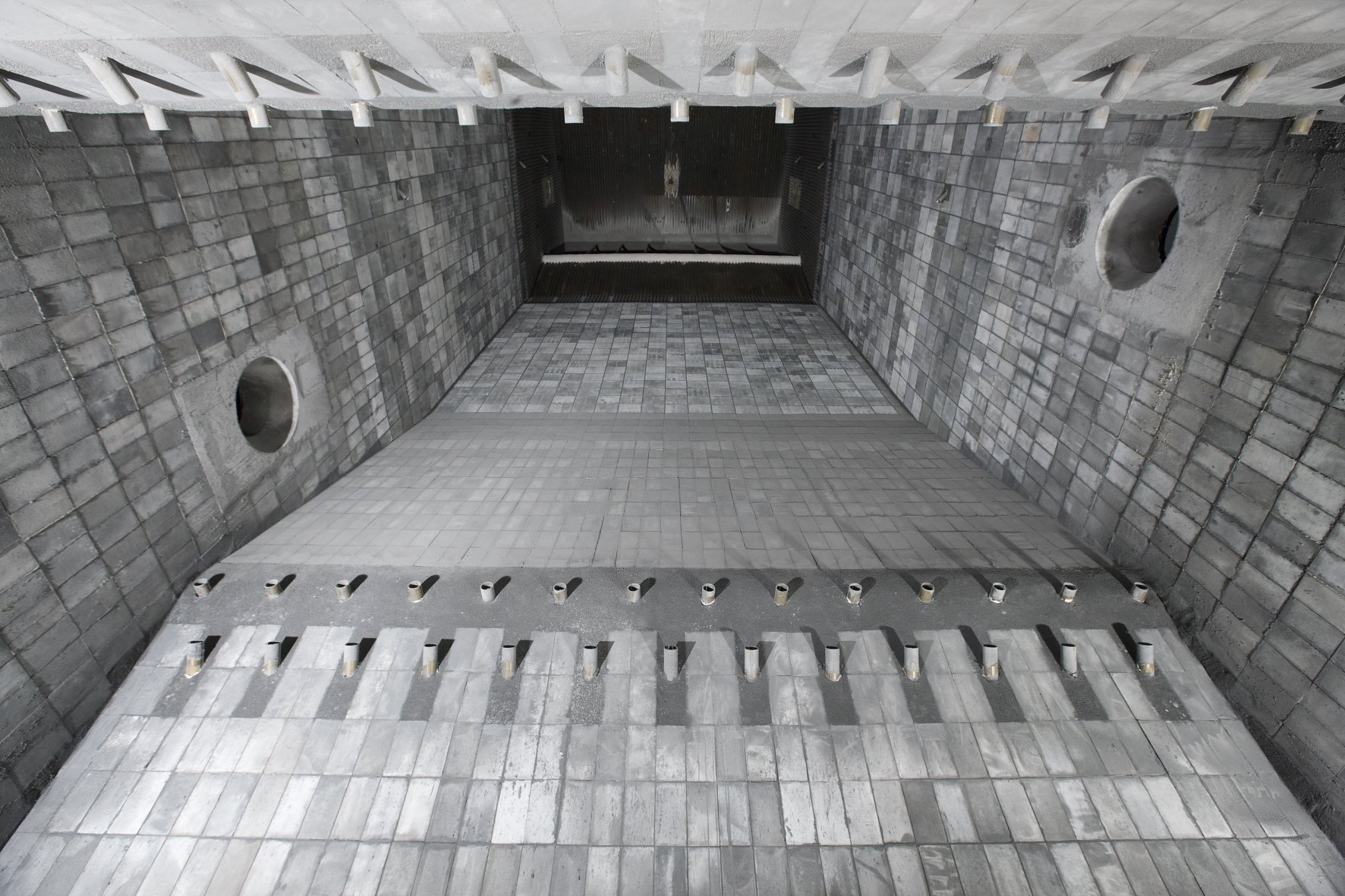

combustion chamber

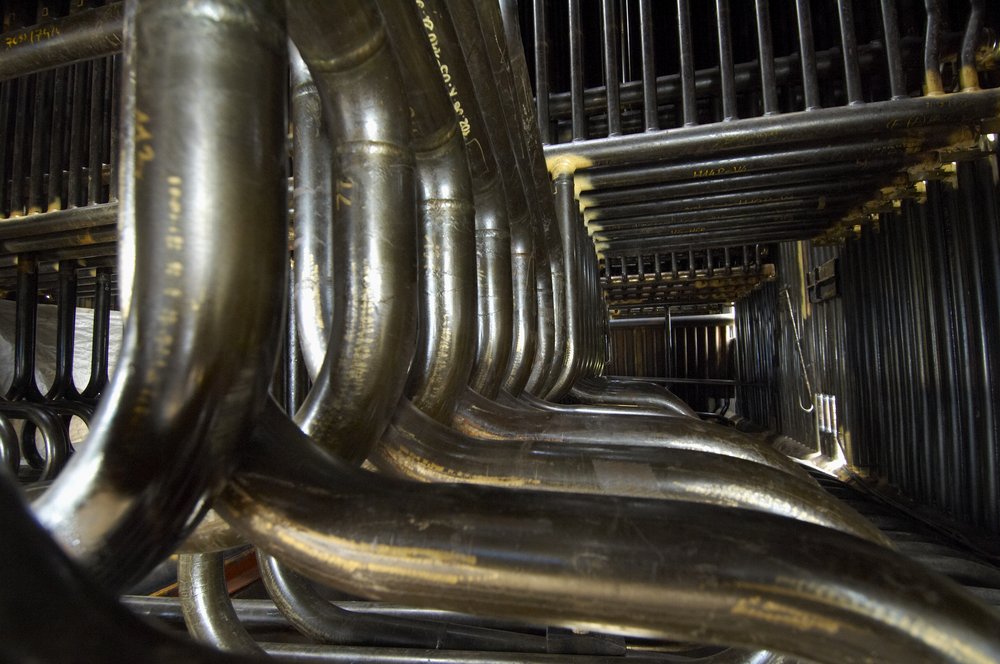

Pressure part pipes

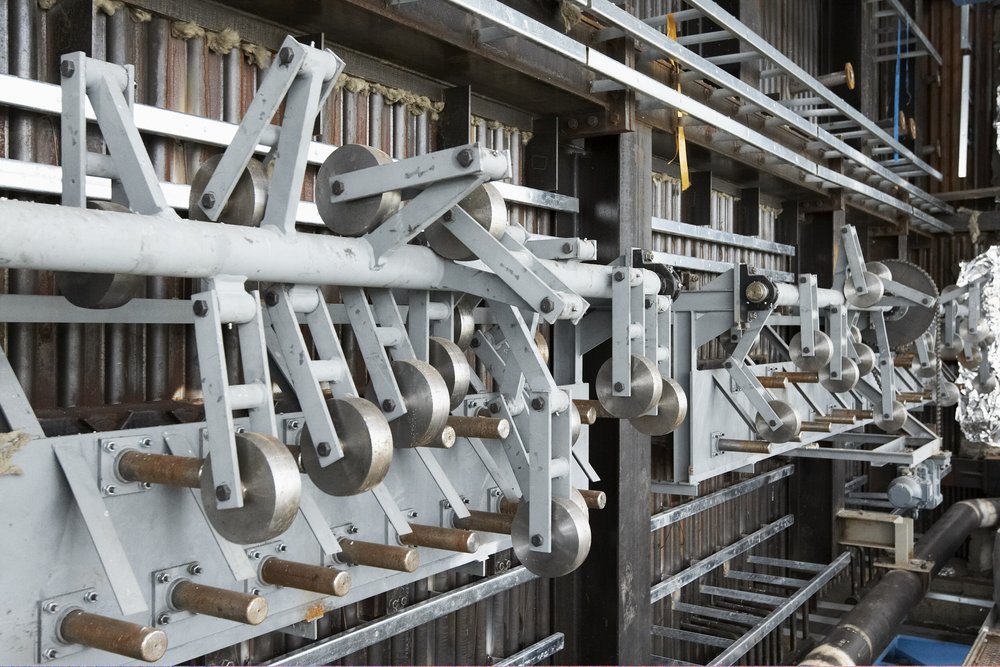

knocking mechanisms
