Energy from Waste Power Plant
Bernburg,
Germany
The task
To ensure the supply of energy to the Solvay Company in Bernburg, a second mainstay for energy supply had to be created. The PreZero Energy GmbH (formerly Energie Anlage Bernburg GmbH) and the pharmaceutical enterprise Solvay planned the installation of a waste-to-energy power plant. On the basis of their powerful references with their conception of identical boiler plants, the Standardkessel Baumgarte was able to obtain the order to install three combustion lines with equal performance rating on a turnkey contract basis.
The solution
The well proven technical conception was supplied from one hand source by Standardkessel Baumgarte. The delivery included, but not limited to the furnace area situated above a water-cooled pusher type grate, two vertical radiation passes and a vertical economiser was selected for these waste-to-energy combustion lines. The overall scope of order encompasses the fuel supply, feed-water system, instrumentation and control engineering, building services engineering, the flue-gas treatment system and the stack.
More information can be found in the reference sheet.
Fuel
Domestic and industrial Waste
Processed
Number of Lines
3
Low Heating Value
10.5
MJ/kg minimal
15.0
MJ/kg nominal
18.0
MJ/kg maximal
Fuel Throughput
11.3
t/h minimal
16.8
t/h nominal
21
t/h maximal
Rated Thermal Input each
70
MW
Steam Capacity each
80
t/h
Steam Pressure
42
bar
Steam Temperature
410
°C
Feed Water Temperature
130
°C
Flue Gas Volume each
136,000
m³ i. N./h
Flue Gas Exit Temperature
180
°C
Operating Permit
17. BImSchV
Commissioning
2010

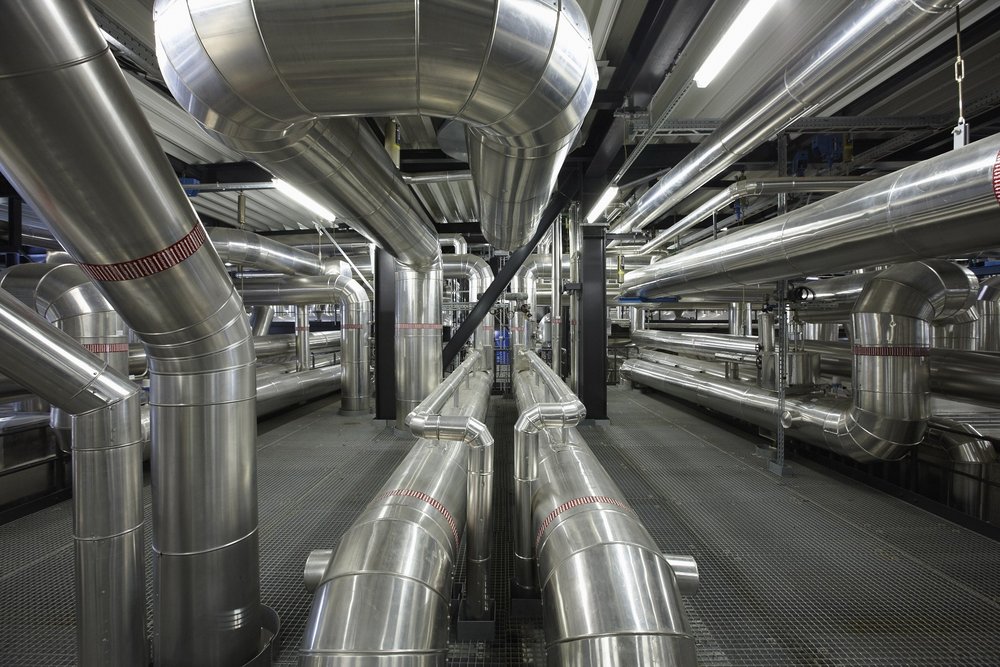

Piping

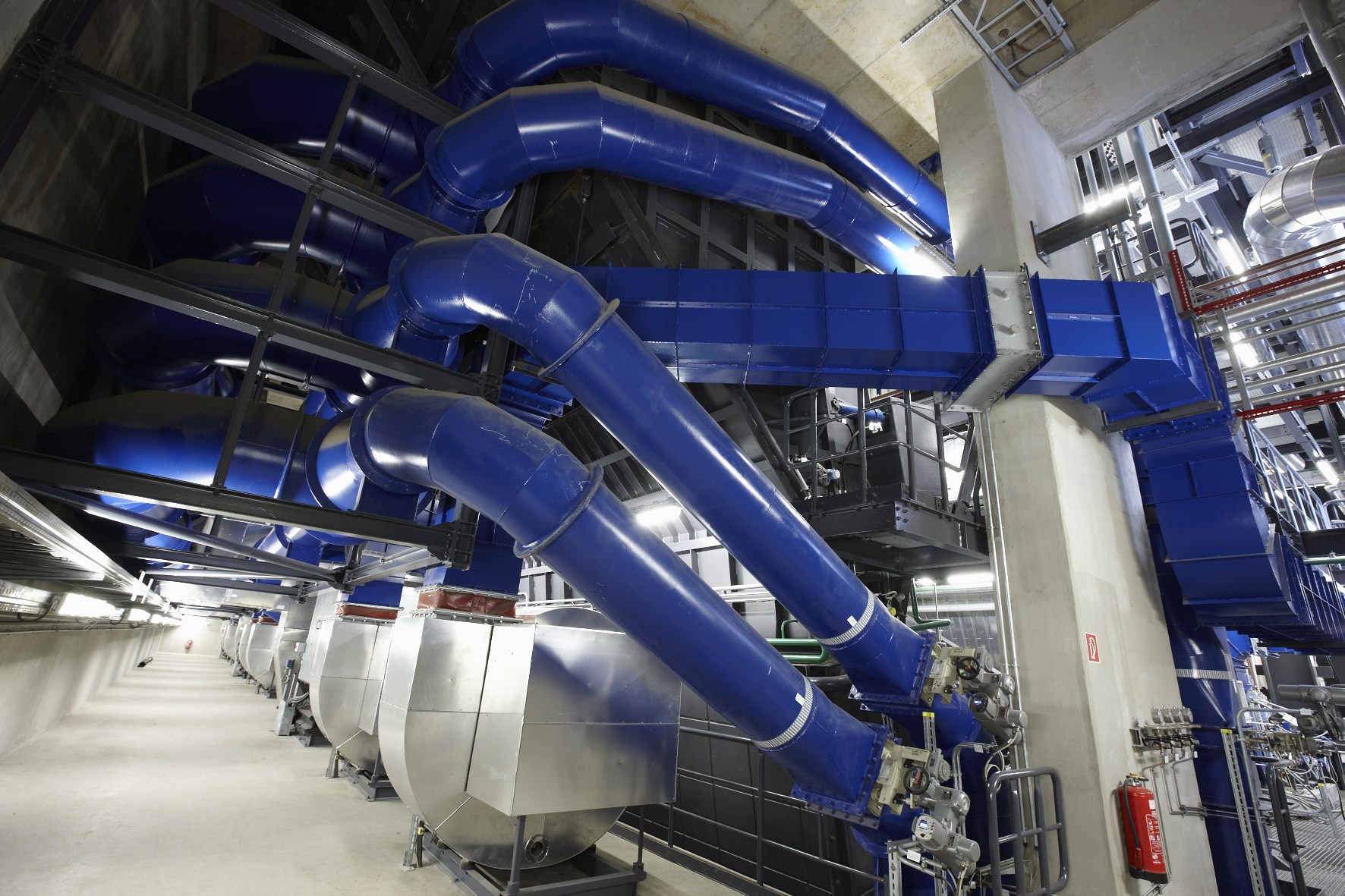

blower

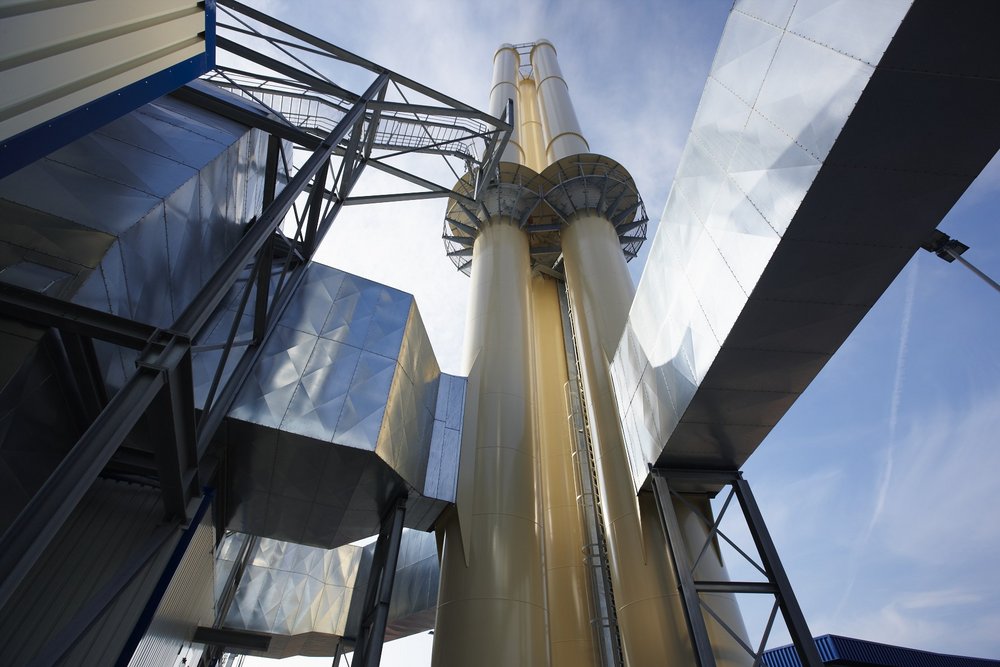

fireplaces
