Energy from Waste Power Plant
Kaunas,
Lithuania
The task
The Lithuanian company UAB Kauno kogeneracine jegaine placed the order with Standardkessel Baumgarte for the supply of the boiler and the grate for the waste-incineration plant in Kaunas, Lithuania.
For the thermal utilization of municipal waste, the boiler plant will have an annual incineration capacity of 270,000 tonnes. The energy produced will be used to generate heat for the city of Kaunas and to feed electricity into the public grid. With a total output of 85 MWth and extremely ambitious steam parameters the required energy is to be made available in an environmentally friendly manner.
The solution
The technical concept chosen for the incineration lines was supplied from one and the same source by Standardkessel Baumgarte. The supply includes, among other things, an air-cooled moving grate, three vertical radiation passes, tail-end pass and a vertical economizer. The scope of supply extends from the fuel supply via the feedwater system, the E/I&C technology and the building services equipment.
For more information, please see our reference sheet.
Fuel
domestic and industrial waste
processed
Number of Lines
1
Low Heating Value
7.0
MJ/kg minimal
9.0
MJ/kg nominal
15.0
MJ/kg maximal
Fuel Flow
34.0
t/h minimal
38.3
t/h maximal
Rated Thermal Input
85
MW
Steam Capacity
107
t/h
Steam Temperature
450
°C
Steam Pressure
77
bar
Feed Water Temperature
130
°C
Flue Gas Flow
170,000
m³ i. N./h
Flue Gas Temperature Exit
160
°C
Emission Values
IED 2010/75/EU reduced
Commissioning
2020

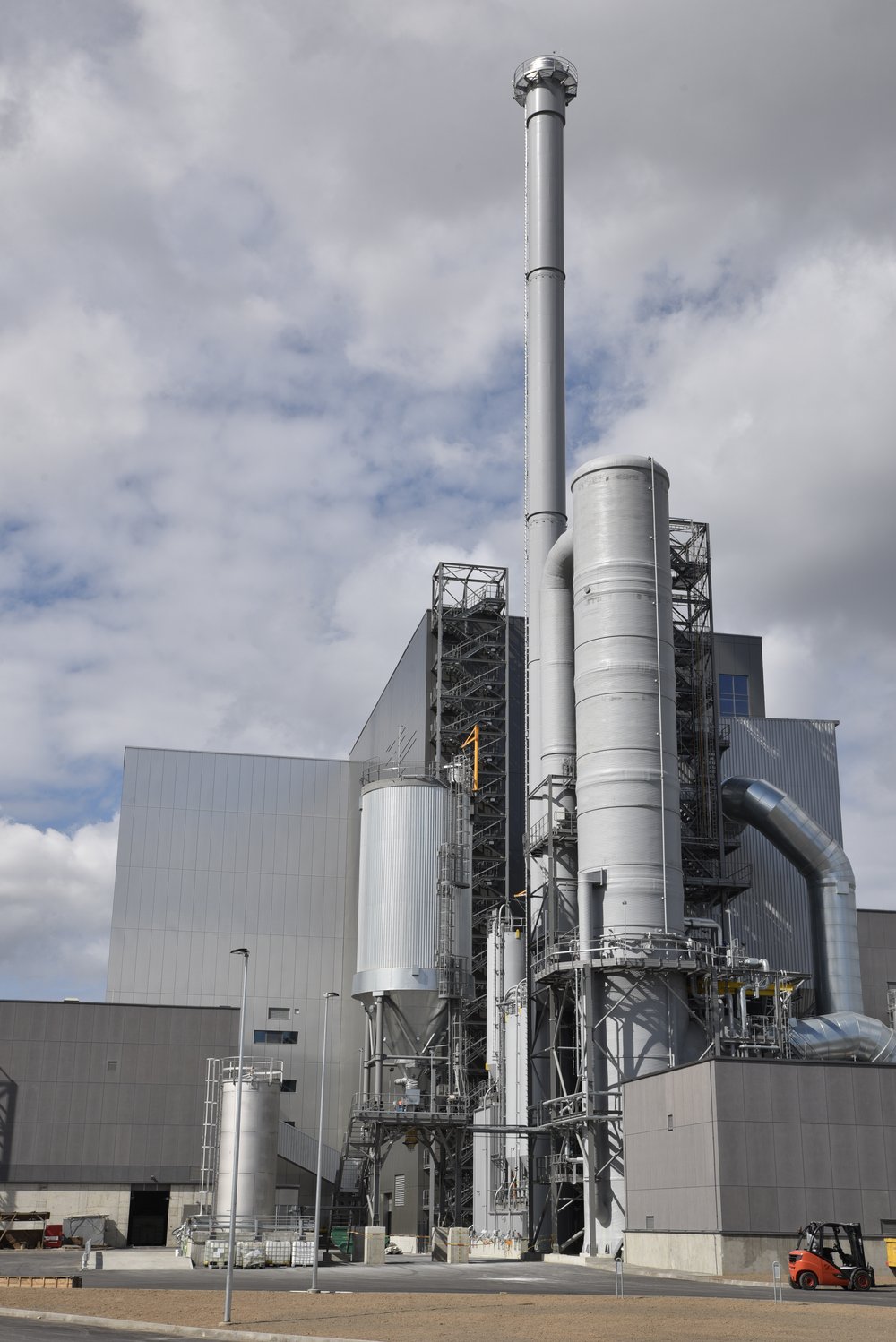

View of the entire plant

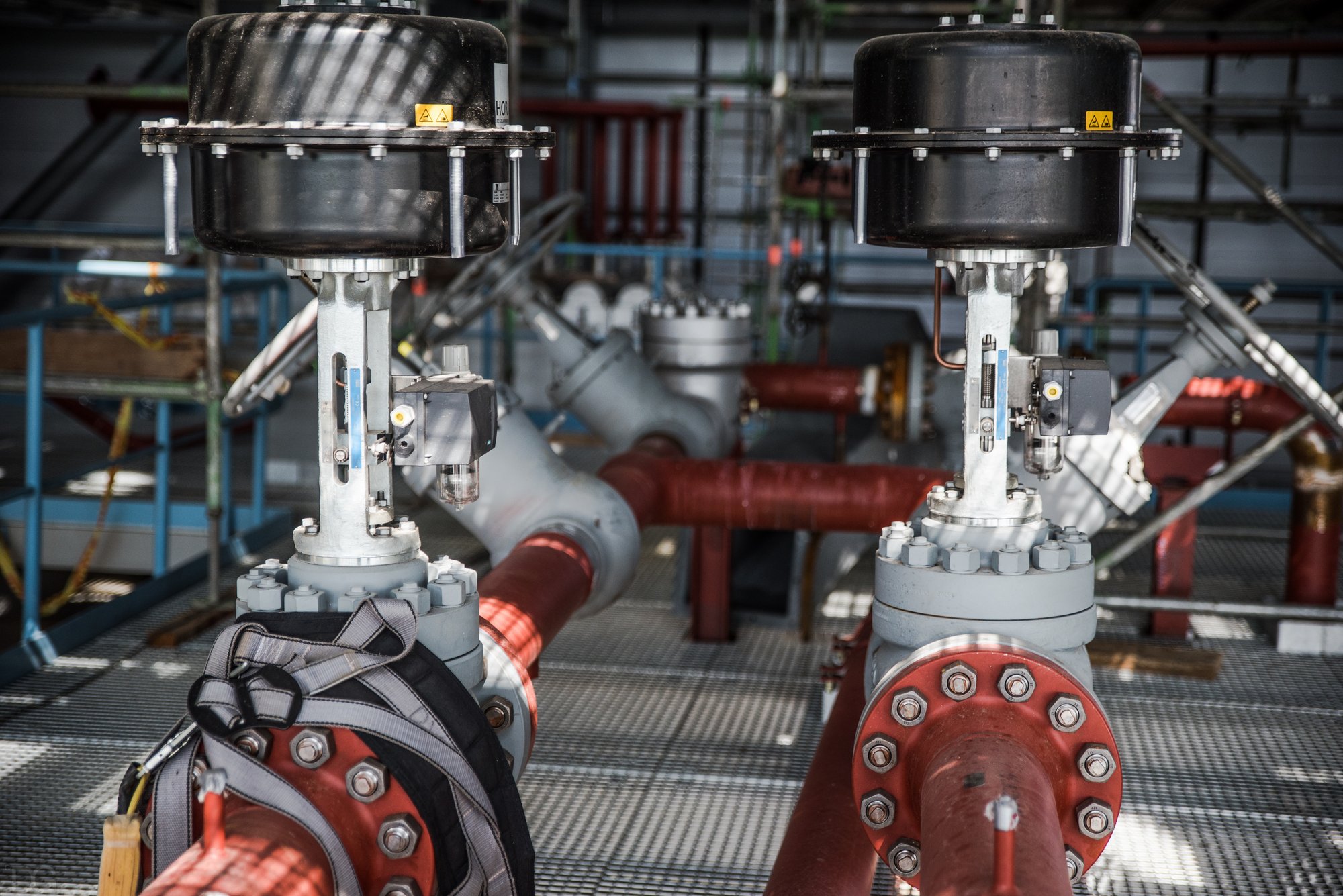

Valves

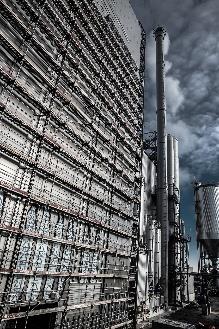

Facade of the boiler room
